Android Compose Grid layout

Hello , My name is Eang Tithsophorn. I had been working with mobile development more than 3 years. I will share with my knowledge for you guys.

For Grid layout we have two layout that provide by android compose itself:

• LazyVerticalGrid
• LazyHorizontalGrid

The list of Usage:

• LazyVerticalGrid
• Material3

You can find more here

Note : Grid layout it kinda need height . As example for you to try , If you have LazyVerticalGrid inside of LazyColumn it will crash when run the app. I believe if you give it height it would be just fine.

LazyVerticalGrid(
    columns = GridCells.Fixed(3),
)

It mean that you have columns of 3 and for display the cell of item.

@Composable
fun LazyVerticalGridView() {
    val data = listOf(
        Icons.Default.Send,
        Icons.Default.Wallet,
        Icons.Default.Payments,
        Icons.Default.PhoneCallback,
        Icons.Default.Savings,
        Icons.Default.Calculate
    )
    LazyVerticalGrid(columns = GridCells.Fixed(3)) {
        items(data) { item ->
            Card(
                modifier = Modifier
                    .padding(4.dp)
                    .height((UIApplication.height() * 0.1).dp)
                    .clickable {

                    },
                colors = CardDefaults.elevatedCardColors(containerColor = Color.White),
                elevation = CardDefaults.elevatedCardElevation(defaultElevation = 3.dp),
            ) {
                Box(
                    contentAlignment = Alignment.Center,
                    modifier = Modifier.fillMaxSize()
                ) {
                    Icon(imageVector = item, contentDescription = "image for category")
                }
            }
        }
    }
}

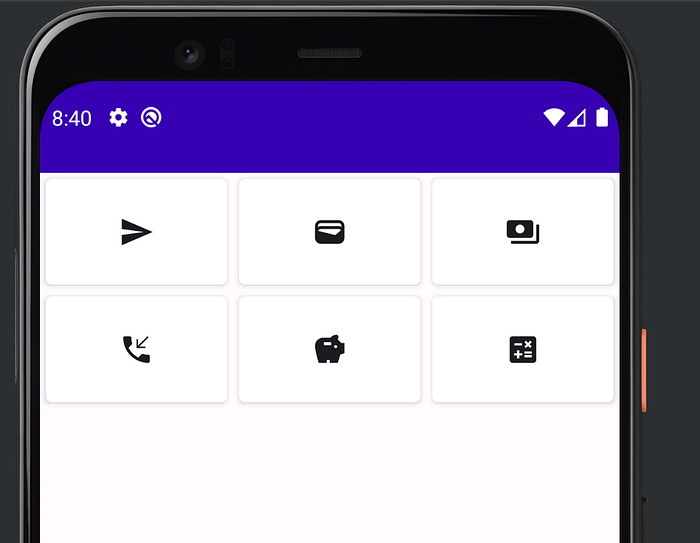

For result

Congrats!

If you want to add title section on the top items list

you can add by this:

LazyVerticalGrid(columns = GridCells.Fixed(3)) {
        item {
            Text(text = "LazyVerticalGridView")
        }
           .......
        items(data) { item ->
           .......
        }
}

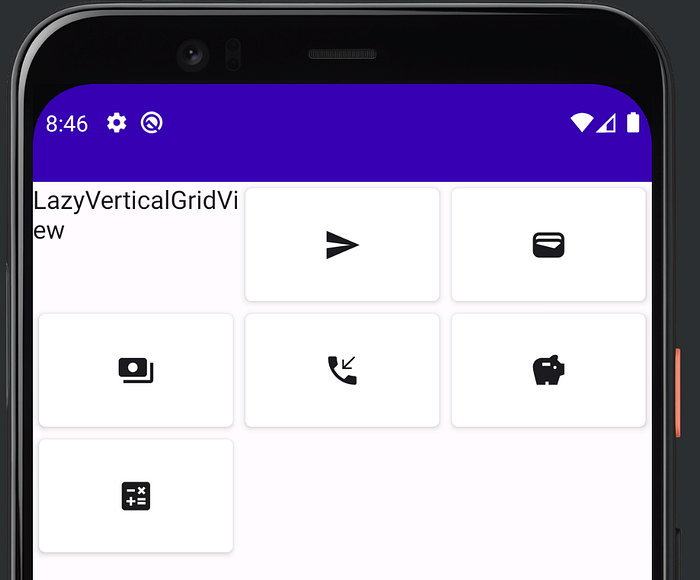

The result will be

Opppps it doest look like what you want right?

Here my explain for you , since you fix the columns side to be 3. so item will be follow the same rules.

The solution for you.

LazyVerticalGrid(columns = GridCells.Fixed(3)) {
        item (span =  { GridItemSpan(3) }) {
            Text(text = "LazyVerticalGridView")
        }
           .......
        items(data) { item ->
           .......
        }
}

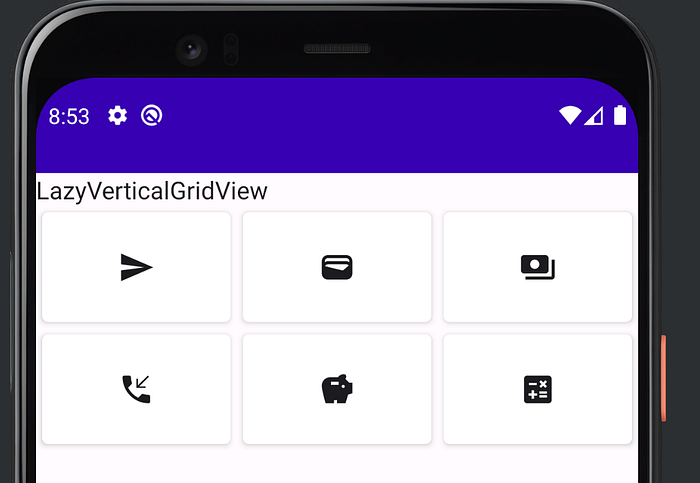

Problem solve!

But it kinda hard for repeated for give GridItemSpan everytime.

item (span =  { GridItemSpan(3) })

move to extension function

fun LazyGridScope.itemCell(
    content: @Composable LazyGridItemScope.() -> Unit
) {
    item(span = { GridItemSpan(this.maxLineSpan) }, content = content)
}

when trigger it.

itemCell {
  Text(text = "LazyVerticalGridView")
}

That’s it for LazyGrid.

Thanks you for checkout.
